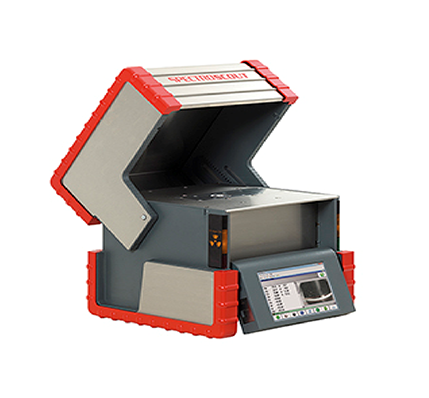

SPECTROSCOUT  –Technical Description

SPECTROSCOUT技术描述

SPECTROSCOUT provides exceptional accuracy at all concentration levelsrequired in geochemical exploration. It also offers rapid (typically 10 to 15minutes) turnaround. Bringing unprecedented precision and speed to the fieldmakes SPECTROSCOUT ideal for applications such as analyzing cores - e.g., todetect shale gas boundary layers – enabling fast direction changes thatmaximize drilling productivity.

SPECTROSCOUT是特别为地球化学及勘探找矿行业设计的现场检测仪器, 可对各种地质、矿物样品，包括岩芯,如确定页岩石油气边界层– 以最少的钻探工作迅速确定钻探方向，对含有的各种元素含量进行定性及定量分析。元素的测定范围广Na-U，含量范围宽，分析速度快(典型分析时间10 -15分钟)。SPECTROSCOUT性能卓越，精度优异，是您实现现场快速准确分析的理想选择。

Simplified software supplies an effortless touchscreen interface.Predefined application packages are designed to fit the task at hand. UniqueiCAL calibration takes just 1 sample and only 5 minutes for standardization.Light weight (12 kg) and small size (270 x 306 x 306 mm) provide convenientportability.

所有的软件操作均可在仪器自带的触摸屏上实现。特定的地质及矿物样品分析软件用于现场分析。独有的ICAL校正系统可使用一块样品在5分钟内实现仪器的标准化。全套仪器重量较轻(12Kg), 尺寸适宜(270 x 306 x 306mm). 易于放置及携带。

SPECTROSCOUT – Application

SPECTROSCOUT的应用

·        Package SPECTROSCOUT for geochemical applications

SPECTROSCOUT 地球化学类样品快速分析应用软件包

To test powdersamples for geochemical applications, SPECTRO calibration modules arepre-installed on the SPECTROSCOUT GEO. Elementselection:

       为实现地化粉末样品的分析目的, 德国斯派克公司已在SPECTROSCOUT仪器预制了分析曲线,

      可分析的元素如下：

„GeochemTrace“:Na*, Mg*, Al*, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se,Br, Rb, Sr, Y, Zr, Nb, Mo, Sn, Sb, Cs, Ba, La, Ce, Hf, Ta, W, Hg, Tl, Pb, Bi,Th, U.

* Only available when using vacuum orHe purge option

* 星号表示仅可在真空或充氦下实现

·        Customer specific application packagescan be calibrated on request

用户可根据自己的需要绘制自己独有的工作曲线

SPECTROSCOUT

SPECTROSCOUT型仪器组成

Spectrometer control

仪器控制

·        Integratedcomputer with touchscreen (optional external notebook)

·        一体化计算机(外接笔记本电脑为选件)

·        Applicationhandled using XRF Analyzer Pro software on external computer

·        应用软件XRF Analyzer Pro可提供外接计算机完成操作过程

·        Bluetooth,Wireless LAN, USB

·        蓝牙、无线、LAN、USB

Consumables:

耗材

• Safety windows (protective film)
• 安全保护膜
• Sample cups and supporting film for the analysis of powder material
• 样品杯及膜

Accessories (Included)

随机附件

• Charger, AC adapter (battery included in the instrument)
• 充电器、交流适配器(电池已安装到主机中)
• USB cable
• USD电缆
• Consumables
• 消耗品

Software

软件

• XRF Analyzer Pro software
• XRF Analyzer Pro软件
• iCAL (Intelligent Calibration Logic)
• ICAL校正(校正标样已安装在主机中)

Documentation

文件

• Basic operator manual
• 基本操作手册
• Back-up on USB-Stick
• USB-Stick备份文件

Options:

选件

·        Videocamera

·        摄像系统

• Printer
• 打印机
• GPS adapter
• GPS适配器
• He flush to increase sensitivity in the element range Na-Cl
• 充氦系统，提高Na-Cl元素的灵敏度

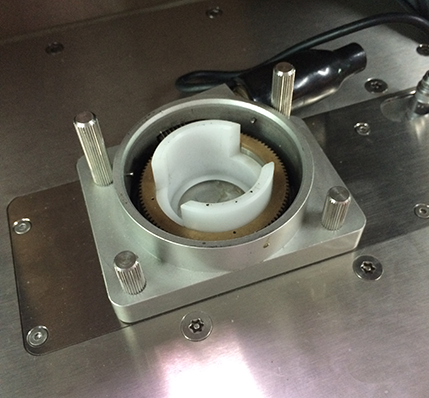

• Sample spinning in combination with He flush
• 氦气吹扫+样品自旋
• Vacuum to increase sensitivity in the element range when analyzing solid samples. This option also includes a sample spinner
• 真空系统以提供粉末样品的灵敏度，同时可选择样品自旋装置
• External notebook including XRF Analyzer Pro software
• XRF Analyzer Pro软件用于外接电脑
• Notebook, Windows 7
• 笔记本电脑
• 12 V DC car charging cable
• 12V直流车载充电电缆
